Olympus PEN EED


半格相機中的大光圈名機Olympus PEN EED

其實會購入這台EED,是完全超出個人計畫之外


在入手PEN EE3 拍了兩捲之後

就迷上了EE3這台小巧精緻的半格相機

不過EE3雖然好,但是對焦系統是採取泛焦設計的關係,拍攝上多少受到侷限

而F3.5光圈跟1/40快門速度的配合下,能出手拍攝的環境也不多,其實可以說是一台晴天機

於是開始物色也相當有名的,大光圈半格名機的選擇,本篇的主角:Olympus PEN EED

碰巧有一個賣家便宜販售手上的EED,品項也相當不錯,就直接入手了。

同樣都是屬於Yoshihisa Maitani大師的PEN系列半格機

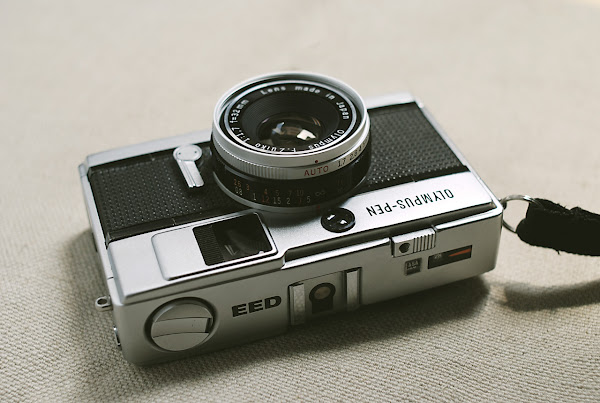

EED的外觀卻與EE3相當不同,沒有EE3圓弧順手的線條所帶給人的可愛感覺

取而代之的是方正俐落的線條,也許有受到當時RF系列(35DC、35RC、35RD)的影響

老實說我對這樣的外型是相當喜愛的。

雖然是40幾年前的老相機,造型在現在的眼光看來,卻一點也不過時

拿在手上總有一種年輕的時尚感,難怪牛仔部落格上會如此的形容它

而除了外觀上的差異外,整體的機身性能也是完全提升

對焦機制不再是EE3的泛焦,而是使用多段估焦的方式,並且最近距離縮短到0.8m

快門速度則是大進展的1/15~1/500,配合F.Zuiko鏡頭的F1.7~F16

兩者搭配起來可以得到相當廣泛的可用EV拍攝數值



測光表採用使用電池供電的內置CDS測光表,使用PX625電池供電,少了硒電池老化的問題

大家最在乎的就是鏡頭採用F.Zuiko,比起EE3的D.Zuiko 多了兩片鏡片,當然相對的鏡頭的尺寸也較大

(Olympus相機的命名中,Zuiko前面的英文字母代表其所使用的鏡片數量
   F.Zuiko的鏡頭即是代表著它具有6片所組成(F為英文字母的第六位)

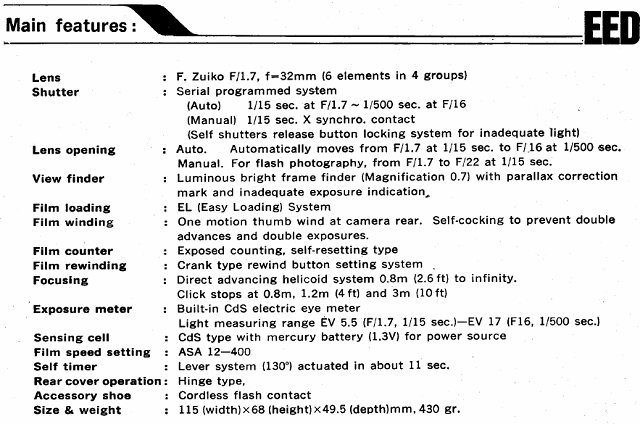

這邊先附上EED的詳細規格以及原文說明書第一頁內容

鏡頭規格:F.Zuiko 32mm/f1.7 (約相當於一般135mm相機片幅的42mm) 鏡片4群6枚,濾鏡尺寸43mm
                手動光圈值:1.7、2.8~22
對焦範圍距離:0.8m-無限遠,並且在0.8m、1.2m、3m有分段,方便使用者拍攝三種常用情景
對焦方式:目測式估距對焦 Zone focusing.
測光方式:內藏式CdS測光計,P模式拍攝
快門速度:1/15~1/500秒
底片速度:ISO 12~400
電池規格:PX625
相機尺寸:(W×H×D)=115×68×49.5mm / 重量430g
生產年份:1967年~1972年
其他:Hot Shoe (熱靴支援)




Olympus PEN EED是一台全自動照相機,裝上電池、底片、設定好ISO值後

使用者能控制的,也只有對焦距離的選擇

很多人都會覺得,估焦很難,常常搞不清楚估焦距離,其實熟悉之後並不會很難

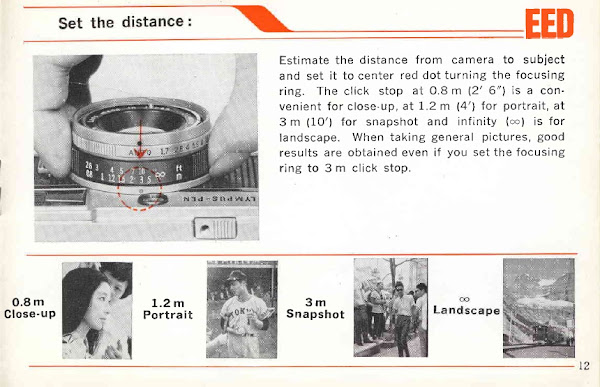

原廠說明書的第12頁有簡易的建議:

簡單的選擇就是:

0.8m - 近拍以及人相特寫
1.2m – 人像、半身像
3m - 街拍、隨拍、泛焦拍攝
無限遠 - 拍攝風景使用

如此以來其實蠻好控制估焦的使用

再來,機身上能控制的另外兩個部分就是ISO感光速度以及光圈了

我們在使用底片相機拍照時常常用到改變ISO來達到加減EV值的目的

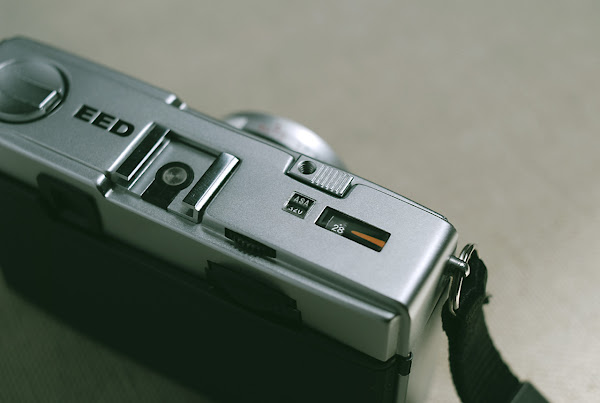

但是EED由於ISO調整轉盤非常的小,如果想這樣操作使用,其實還蠻辛苦的

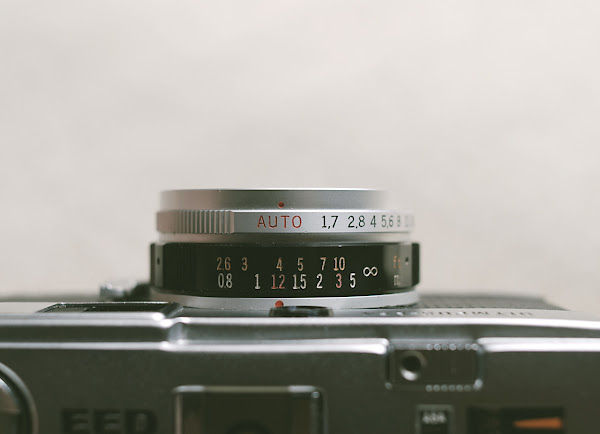

光圈的部分,雖然鏡頭前面配有光圈值選擇

但是平常使用上必須轉至AUTO,機器的測光功能才會運作

並且拍攝時,機器並不會顯示拍攝時的光圈快門值,是第一個非常可惜的一個部分

使用者永遠不知道機器配給你的是怎麼樣的數值。



而當使用者將光圈設定在AUTO以外的數值時,機身電子系統就會不運作,也不會舉起小紅傘

光圈由使用者選擇,快門則固定在1/15秒,這是第二個非常可惜的部分

因為快門值固定,這表示為了得到正確的曝光值,使用者必須自己需要的估算光圈值

也就是說,這個設計是當相機沒電時、測光系統失效時的備用應急方案

或是當場景過度昏暗,但是無論如何都必須拍照時

可以強迫相機用F1.7 、1/15秒的設定值拍攝

小紅旗的設計依然可以在這台相機上看到

值得注意的是,在手動模式下,小紅傘是完全不會運作的

而在轉到AUTO的自動模式下,小紅傘只有在測光正常、並且電子運作正常的時候才會讓你拍攝

也就是說,沒電池的時候轉到AUTO,EED是不會讓你拍攝的

非常親切的設計、也是為了防止使用者拍壞照片

電池的使用上,EED採用的是1.35V的PX625電池

此電池目前已經停產,所以使用LR44改裝的方式來使用

請見自製PX625轉接代用電池



使用Fujicolor Xtra400 試拍第一捲:
半格機這樣玩其實很有趣



比起EE3的清淡日系感,我覺得EED有比較濃郁的感覺



純粹測試一下閃燈拍攝,效果出乎預料的相當的好



這類相機最怕的就是忘記拿下鏡頭蓋...

沒想到剛好搭配上一張橫幅還別有特殊的構圖效果




EED搭配Xtra400的色彩演繹很漂亮



左邊那張是設定在1.7強迫拍攝,想製造景深感也不是完全不行




相關連結:
牛仔部落: Olympus PEN EED - 最時尚的半格機
Olympus Pen EED  | photalks blog
使用者手冊(Bbutkus)
自製PX625轉接代用電池
